Decisions: if/else

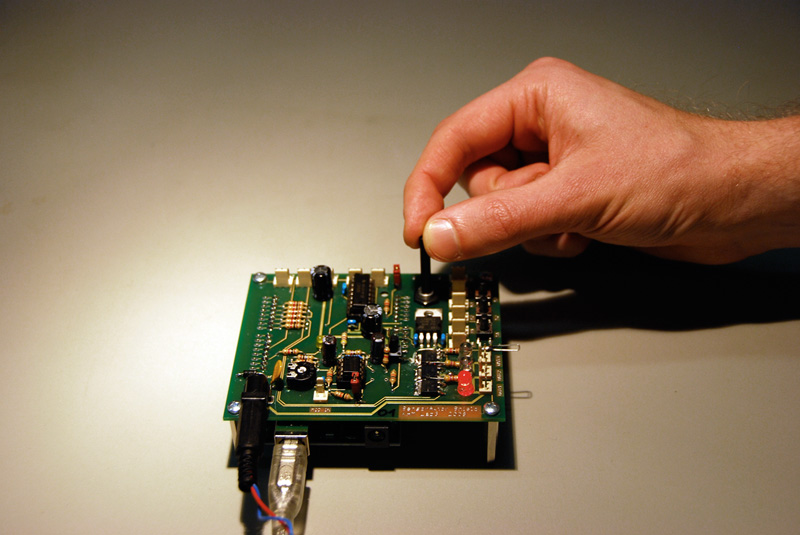

Reading a Poti and deciding which LED to light and wich to turn off, using the Arduino if/else statements.
/* switch LEDs
*
* Switch between 3 LEDs using analog input and an if/else decision
*
* Making Things, http://makingthings.andreasmuxel.com
* Based on the SensorAktor-Basics of the Lab3, Academy of Media Arts Cologne
* http://interface.khm.de
* pin mapping SensorAktor Shield
* import SensorAktor.h to get already defined mapping
*
* analog inputs: analog0 = pin0, analog1 = pin1, analog2 = pin2,
* analog3 = pin3, analog4 = pin4, analog5 = pin5
* built-in poti: poti = pin5
* amplified input: mic = pin0
* switches: switch1 = pin1, switch2 = pin2, switch3 = pin3
* leds: led1 = pin3, led2 = pin5, led3 = pin6
* power outs: out1 = pin3, out2 = pin5, out3 = pin6
* motor outs: motor1_1 = pin8, motor1_2 = pin13, motor2_1 = pin11, motor2_2 = pin12
* motor pwms: pwmMotor1 = pin10, pwmMotor2 = pin9
* servo outs: servo1 = pin2, servo2 = pin4, servo3 = pin7
*/
// inlcude sensor aktor library for pin mapping
#include <SensorAktor.h>
// poti value
int potiValue;
// this block is executed one time when programm starts
void setup(){
// set pin modes
pinMode(led1,OUTPUT);
pinMode(led2,OUTPUT);
pinMode(led3,OUTPUT);
}
// this block is executed in a loop after setup is called one time
void loop(){
// get value of poti (value between 0 and 1023)
potiValue = analogRead(poti);
// decide to turn on and off LEDs
if (potiValue < 341) {
digitalWrite(led1,HIGH);
digitalWrite(led2,LOW);
digitalWrite(led3,LOW);
} else if (potiValue < 682) {
digitalWrite(led1,LOW);
digitalWrite(led2,HIGH);
digitalWrite(led3,LOW);
} else {
digitalWrite(led1,LOW);
digitalWrite(led2,LOW);
digitalWrite(led3,HIGH);
}
}
