Servo Motor Controller

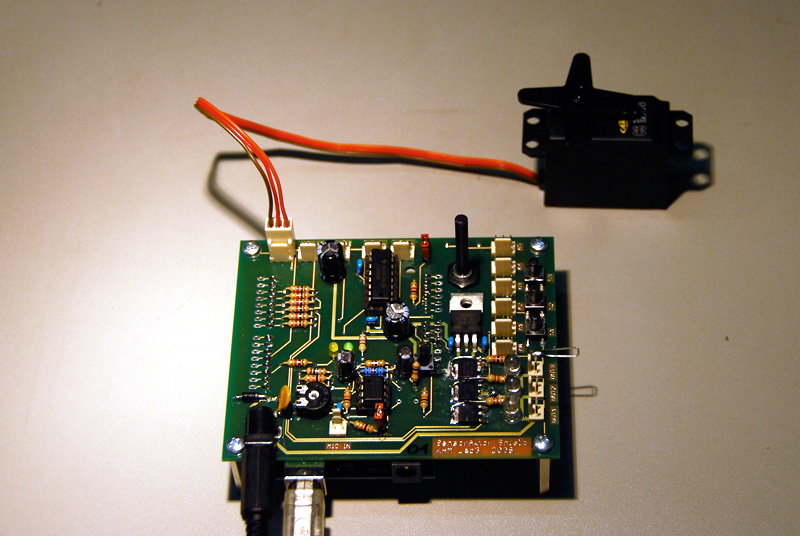

Basic example to control a servo motor using built-in poti of SensorAktor-Shield.
/* servo controller
*
* using poti to control servo
*
* Making Things, http://makingthings.andreasmuxel.com
* Based on the SensorAktor-Basics of the Lab3, Academy of Media Arts Cologne
* http://interface.khm.de
* pin mapping SensorAktor Shield
* import SensorAktor.h to get already defined mapping
*
* analog inputs: analog0 = pin0, analog1 = pin1, analog2 = pin2,
* analog3 = pin3, analog4 = pin4, analog5 = pin5
* built-in poti: poti = pin5
* amplified input: mic = pin0
* switches: switch1 = pin1, switch2 = pin2, switch3 = pin3
* leds: led1 = pin3, led2 = pin5, led3 = pin6
* power outs: out1 = pin3, out2 = pin5, out3 = pin6
* motor outs: motor1_1 = pin8, motor1_2 = pin13, motor2_1 = pin11, motor2_2 = pin12
* motor pwms: pwmMotor1 = pin10, pwmMotor2 = pin9
* servo outs: servo1 = pin2, servo2 = pin4, servo3 = pin7
*/
// import sensor aktor library for pin mapping
#include <SensorAktor.h>
// import servo library
#include <Servo.h>
// servo
Servo myservo;
// poti value
int potiValue = 0;
// this block is executed one time when programm starts
void setup(){
// set pin modes
pinMode(servo1,OUTPUT);
// attaches the servo on the servo pin
myServo.attach(servo1);
}
// this block is executed in a loop after setup is called one time
void loop(){
// read poti (value is between 0 and 1023)
potiValue = analogRead(poti);
// scale sensor value to use it with the verso (value between 0 and 179)
potiValue = map(potiValue, 0 , 1023, 0, 179);
// waits for the servo to get there
delay(15);
// sets the servo position according to the scaled sensor value
myServo.write(potiValue);
}
